Dura-Post Flexi360 Route Marker
Cycleway Markers

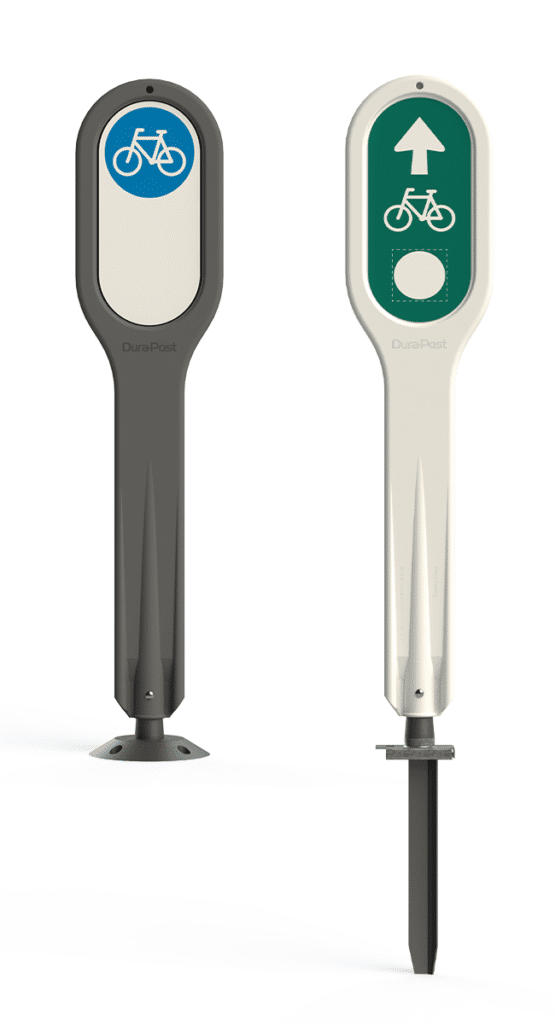

Flexi360 Route Marker FOR CYCLEWAYS
The Dura-Post FLEXI360 Route Marker is a premium quality system designed to be safe, highly visible, and cost-effective. Designed and manufactured in Australia for Australian conditions, this route marker features a durable, High density polyethylene (HDPE) post with flexible polyurethane hinge. The product is designed to self-align to a vertical position after sustaining severe impacts from any direction, thus always maintaining ongoing safety and visibility.
The premium quality marker includes a large recessed area on each side for signage, making it ideal for cycleways, walkways, and a wide range of other applications. The sign faces can be customised with various graphics and decals to suit specific requirements, and installation options include a glue down or bolt down surface mount and a driveable steel anchor. With a visible height of one metre and a choice of colours, the Dura-Post FLEXI360 Route Marker offers a reliable and adaptable solution for effective route marking.

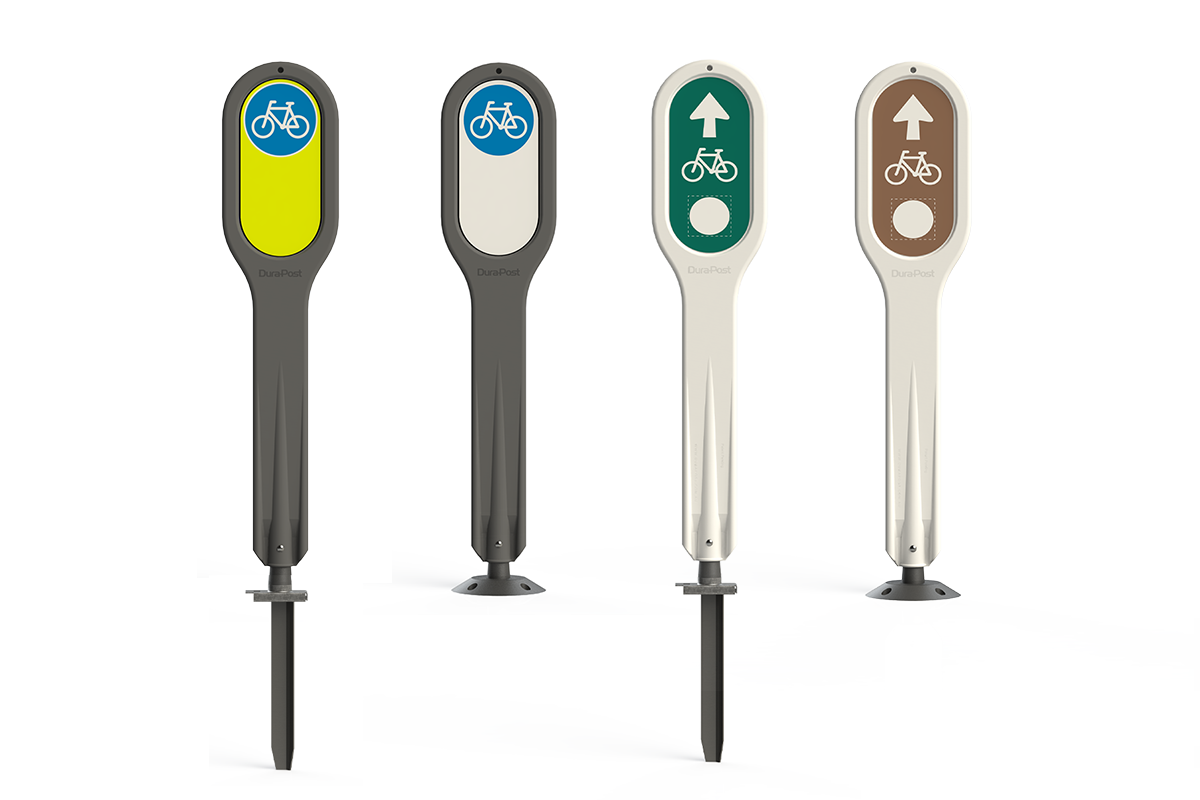

Cycleway Markers
DURA-POST 360 ROUTE MARKER FOR CYCLEWAYS
This is just an example of product SKU
WHY CHOOSE FLEX360 ROUTE MARKER?
- Maintains road and trail safety by self-aligning after severe impacts
- Highly visible and effective as a hazard marker, even in low-light conditions
- Customisable signage and graphics for wayfinding, branding, or hazard warnings
- Suitable for various applications: cycleways, mountain bike trails, ski resorts, walking trails
- Passively safe for cyclists and pedestrians
- Wildlife friendly
- Weather resistant and UV Stabilised for unrivalled performance in all Australian conditions.
- Easy installation and removal for seasonal or project-based use
- Short lead times due to Australian manufacturing
- Reduces maintenance and replacement costs through robust design
- Enhances project flexibility with multiple colour and mounting options
- Improves user experience with clear, directional, and branded information panels
FLEXI360 ROUTE MARKER APPLICATIONS
CYCLEWAYS
The Flexi360Route marker surface mounted for sealed cycleway surfaces, is passively safe, state & territory road compliant and has reflective decal to suit any cycleway application.
MTN BIKE TRAILS
Ground spike for unsealed surfaces and bike trails, the Flexi360 Route Marker is passively safe, weather resistant with a removable top making it ideal for seasonal sports such as ski trails, to walking and mountain bike trails at ski resorts.
SKI RESORTS
Extreme weather resistance, removable top and a customisable ground spike length of the Flexi360 Route Marker makes it perfect for use in ski resorts when switching ski paths to walking and bike trails.
WALKING TRAILS
Wildlife friendly and weather resistant, using the Flexi360 Route Marker ground spike for unsealed surfaces, on walking trails, and can be customised as needed, to suit your aesthetics.
FLEX360 ROUTE MARKER FEATURES
HDPE SHEATH AND PU HINGE
- With almost two decades of proven performance in Australia, the Flexi360 is an exceptional impact recovery product due to its unique polymer sheath and hinge design.
- The product is designed to self-align to a vertical position after sustaining severe impacts from vehicles in any direction, thus always maintaining road safety.
- Manufactured in Australia, the sheaths are blow moulded premium grade high density polyethylene and the hinges are injection moulded polyurethane. Both polymers are blended with premium grade masterbatch and UV stabiliser for unrivalled performance in all Australian conditions.
- The assembled post height is 1m. Available in a range of colours to suit any application.
GRAPHICS AND DECALS
- The sign recesses of the Flexi360 Route Marker can fit two 150mm circular signs or a 150x300mm rectangular sign.
- Graphics and decals are customisable on engineer grade vinyl and retroreflective film.
SURFACE MOUNT
- Flexi360 products have surface mount base options for hard pavement installations.
- The 200mm polyurethane surface mount base is a popular non-metallic option for cycleways and can be installed using epoxy and/or bolts.
- Bolt down steel surface mount plates also available for raised curbs.
GROUND ANCHOR
- Flexi360 products have driveable steel anchors for medium and hard ground installation.
- Slide the post’s receptor plate onto the ground anchor and crimp the end of the receptor to firmly secure the post to the anchor.
- Simply uncrimp the receptor plate to remove the post from the anchor – ideal for alternating route marker posts for seasonal sports (e.g. skiing and mountain bike trails).
FLEXI360 ROUTE MARKER INSTALLATION OPTIONS
The Flexi360 Route Marker can be installed using the Surface Mount or Drivable anchor making them suitable for use across a wide range of projects and ensures quick, safe, and efficient setup on all types of surfaces:
GROUND ANCHOR
Perfect for unsealed roads and rural environments, the Flexi360 products have drivable steel anchors for medium and hard ground installation and are driven directly into the ground or road base using manual or mechanical drivers.
SURFACE MOUNT
Engineered for concrete surfaces such as bridges, tunnels, and barriers, the Flexi360 products have surface mount base options for hard pavement installations. Easily installed with a polyurethane surface mount and base with bolts and adhesive.
TECHNICAL SPECIFICATIONS
Delnorth Steel-Flex ® is a patented flexible steel delineator post. Steel-Flex may be surface mounted into concrete with secure anti vandal fasteners. Steel-Flex ® is capable of withstanding repeated impacts and wheel overs by vehicles with minimal damage to the post or vehicle. Steel-Flex ® roadside delineator posts comply with:
British & European Standard E N 12899 – 3:2008 & Australian Standard AS 1742.2 and AS/NZ 1906.1
Steel-Flex ® can retain a minimum of 75% of colour, appearance and physical properties for 10 years even when exposed to extreme weather conditions. They are fire resistant and the powder coating can withstand temperatures of up to 140°C.
Steel-Flex ® flexible steel delineator posts stand vertical when installed. Testing has shown that the post will not deflect more than 35mm when subjected to wind speeds of 45m / sec. (162 kph) on the front face (convex surface) of the post.
The load required to bend each post length of 1000mm long to an angle of 90° should not be less than 30N. It only requires 5kg pressure to bend a Steel-Flex ® post.
Steel-Flex delineator posts return to vertical automatically after repeated vehicle impacts. They have been tested to 10 impacts from a passenger type vehicle at 100 kph without compromising the integrity of the post. It has been tested to ten wheel over’s at 50kph from a fully laden 42 tonne truck without compromising the integrity of the post.
FLEX360 ROUTE MARKER
FLEXI360 Route Markers are:
- Tested and compliant with AS 1580.
- Manufactured in Australia for Australian conditions.
- Assembled height is 1 metre, with customisable graphic options.
- Installation options include glue/bolt down surface mount and drivable anchor options.
DOWNLOADS
INSTALLATION EQUIPMENT For Flexi360 Route Markers
Installation Videos
Lane-Flex & Lane-Flex Pro Installation
Cycleway Markers IN USE
“A strong focus of the pop-up bike lanes program is to help riders find their way, using custom wayfinding signage. The benefit of the customisable information panel on the Flexi360 Route Marker makes it perfect for all projects. The high quality printed panel, with Class 1 reflective coating for low-light conditions allows us to incorporate directional information to riders and project branding to all road users. The bright colours and reflective coating also make the product a highly effective hazard marker for drivers.
The products being manufactured in Australia with short lead times has been very useful for our project. We look forward to seeing more of these products deployed on our projects in the coming months.”
