Dura-Post Tubular Guidepost
Flood Guide Posts
PREMIUM QUALITY. EXCEPTIONAL RE-STRAIGHTENING CAPABILITIES.
Dura-Post® Steel Guide Post & Marker Post System is of the highest quality and manufactured from premium mild tensile steel. This product has the capability of withstanding multiple impacts and allows exceptional re-straightening abilities.
Dura-Post Steel Guide posts are constructed from galvanised steel and are pre-treated before they are powder coated with Dulux® powder coat treatment preventing rust, providing the post with added durability and a longer lifespan which has a 10-year gloss retention warranty.
Tubular Steel
Dura-Post Tubular Steel Guide Posts are made from C250 pipe 50nb extra light (2.3mm wall thickness) complies with AS1163 coating = hot dipped galvanised, Powder coating = high-grade powder with a minimum thickness of 75 microns. Posts are pressed so that the top 600mm is a minimum of 80mm wide, and a 5,000mm2 delineator is applied 50mm from the top of the post.
Manufactured to QLD Main Roads 1356 and approved for use by DTMR as a Floodway Guidepost.
TECHNICAL SPECIFICATIONS

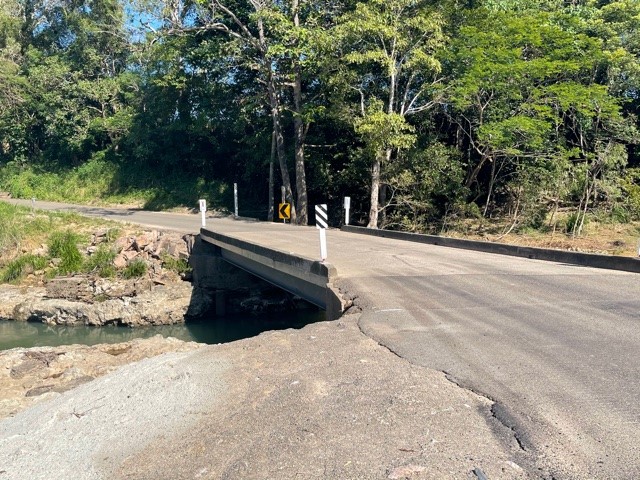

Classified as a Frangible Road Edge Guide Post, standard lengths are 1000mm, 1200mm and 1600mm white powder coated. There is a product identification sticker denoting the installation depth mark and date of manufacture. A flattened pressed section at the top of the post to house the delineation. Dura-post Tubular Steel Floodway Guide Posts are usually used in areas where flood waters can or do cross the road or through cuttings where ground sockets are installed.
- Dura-post Tubular Steel Guide Posts are manufactured from C250 Pipe 50nb Extra Light {2.3mm wall thickness) complies with AS1163 Coating= hot dipped galvanised, Powder coating= high grade powder with a minimum thickness of 75 microns. Posts are pressed so that the top 600mm is minimum of 80mm wide, a 5,000mm2 delineator is applied 50mm from the top of the post.
- Hot dipped galvanised, Powder coating= high grade powder with a minimum thickness of 75 microns. Standard colour White. Other colours are available upon request.
This material, will not support combustion.
Both front and rear delineators to Class la are affixed to the Steel Guide Posts when supplied.They will be to the type and size as nominated in the customer’s state or territory specifications e.g. Class 1 (5,000mm2 (50mm x 100mm) or Class lA 10,000mm2 (50mm2 x 200mm).
Hot dipped galvanised, Powder coating= high grade powder with a minimum thickness of 75 microns. Standard colour White. Other colours are available upon request.

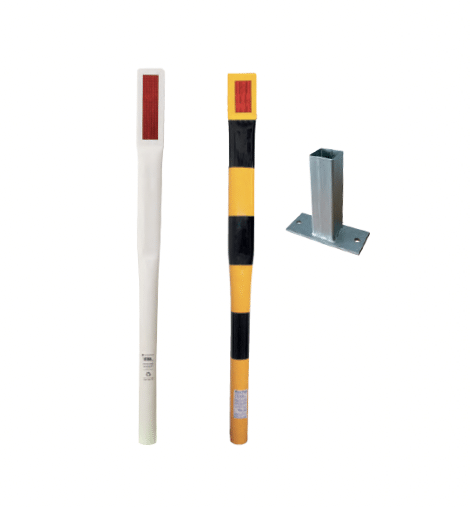

Dura-Post Tubular Steel Guide Posts can be installed by either:
- Insert into ground socket or Oz post
- Surface Mount Adapter (FSG2162)
- Concrete into place
TUBULAR STEEL
Tubular Steel Posts can be manually or mechanically installed with Dura-Post lnstallation Equipment.
