Plas-Flex™
PVC Guideposts
Low Cost solution for roadside delineation
Delnorth Plas-Flex™ PVC Guidepost is an innovative, low cost, low maintenance solution for your roadside delineation requirements. Plas-Flex guideposts come in 3mm, 4mm and 5mm thickness UV stabilised PVC. Plas-Flex has a large single barb for superior in ground retention and is manufactured in Australia.
The flexible delineated guidepost is designed for rapid installation and engineered for durability. Plas-Flex is capable of withstanding repeated impacts by vehicles with minimal damage to the post or vehicle.
Plas-flex PVC Guidepost FEATURES & BENEFITS
Superior Impact Resistant PVC
The Plas-Flex guidepost is made from shatterproof and impact-resistant PVC and can remain intact longer than alternative plastic posts.
Zero Rust or Corrosion
Manufactured from 100% PVC, eliminating the risk of rust and the need for repainting.
High Visibility
Factory-applied Class 1a retroreflective sheeting ensures optimal nighttime visibility so motorists and operators can clearly identify lane boundaries and roadside hazards.
Lightweight & Safe
Weighing under 1kg per post, Plas-Flex are exceptionally easy to deploy, transport, and install, reducing on-site risk.
UV-Stable
Resistant to fading, cracking, or degradation under harsh Australian conditions, making them the perfect low cost option for low impact areas.

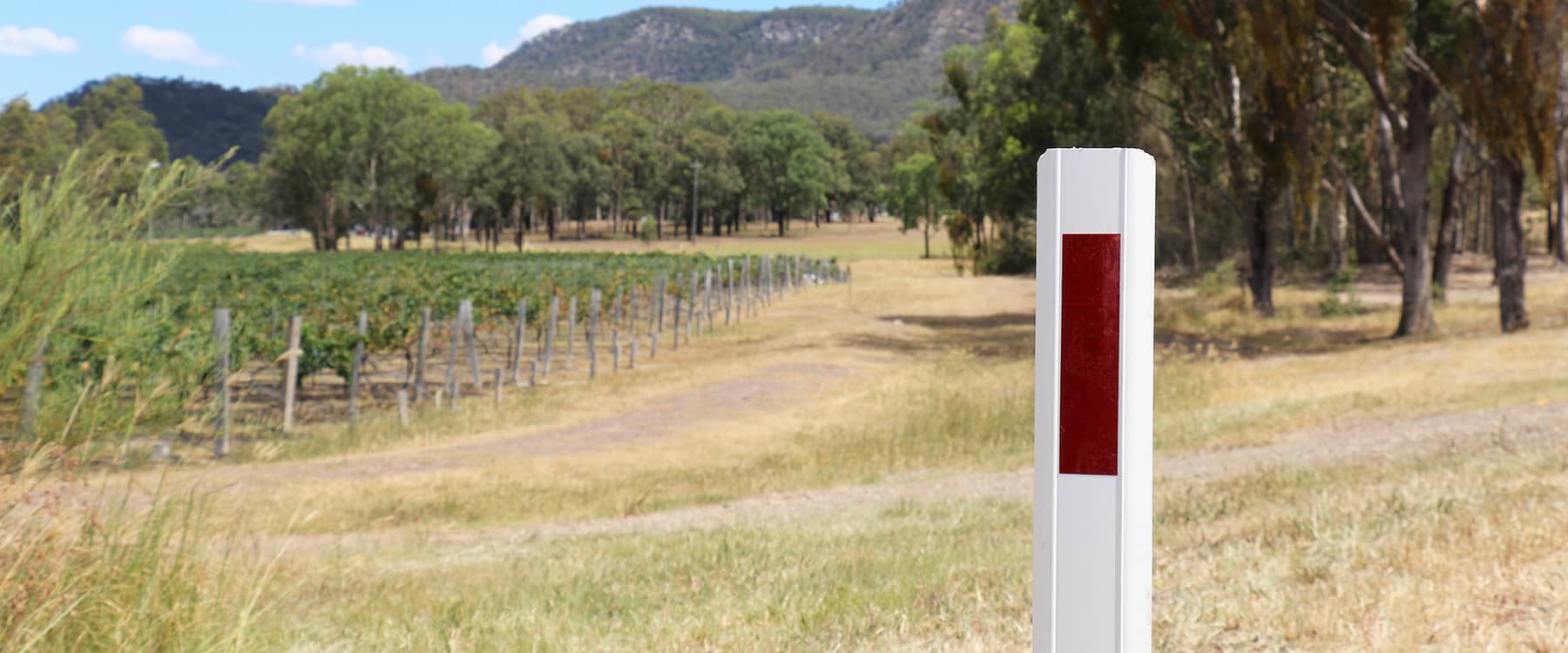

Plasflex PVC Guidepost Applications
- Rural and regional roads
- Remote, mining and resource sector haul roads
- Construction work zones and temporary work sites
- Car parks, industrial complexes, and depots

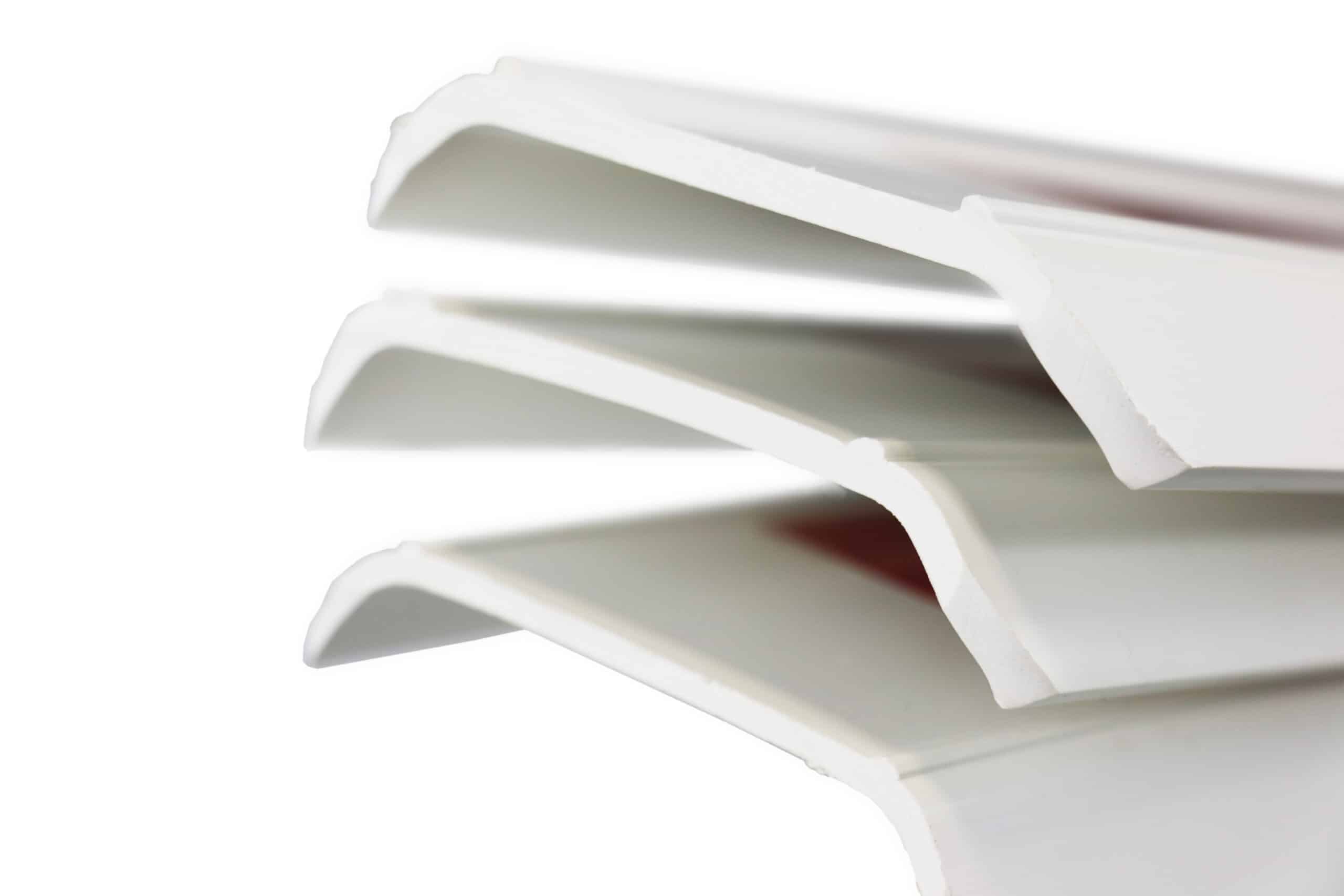

PLAS-FLEX PROFILES
Light Duty 3mm (PP314)
Medium Duty 4mm (PP414)
Heavy Duty 5mm (PP514)
PROFILE RANGE
Light Duty 3mm (PP314)
Medium Duty 4mm (PP414)
Heavy Duty 5mm (PP514)
PVC PLASTIC GUIDEPOST FEATURES
- Low price, with multiple profile options
- Class 1a retroreflective delineation
- Large ground retention barb for superior in ground retention
- Recessed delineation
- Available in any colour or delineation type
- Available in 3, 4 & 5mm thick UV stabilised PVC.
- Manufactured in Australia.
DOWNLOADS
TECHNICAL SPECIFICATIONS
Delnorth Steel-Flex ® is a patented flexible steel delineator post. Steel-Flex may be surface mounted into concrete with secure anti vandal fasteners. Steel-Flex ® is capable of withstanding repeated impacts and wheel overs by vehicles with minimal damage to the post or vehicle. Steel-Flex ® roadside delineator posts comply with:
British & European Standard E N 12899 – 3:2008 & Australian Standard AS 1742.2 and AS/NZ 1906.1
Steel-Flex ® can retain a minimum of 75% of colour, appearance and physical properties for 10 years even when exposed to extreme weather conditions. They are fire resistant and the powder coating can withstand temperatures of up to 140°C.
Steel-Flex ® flexible steel delineator posts stand vertical when installed. Testing has shown that the post will not deflect more than 35mm when subjected to wind speeds of 45m / sec. (162 kph) on the front face (convex surface) of the post.
The load required to bend each post length of 1000mm long to an angle of 90° should not be less than 30N. It only requires 5kg pressure to bend a Steel-Flex ® post.
Steel-Flex delineator posts return to vertical automatically after repeated vehicle impacts. They have been tested to 10 impacts from a passenger type vehicle at 100 kph without compromising the integrity of the post. It has been tested to ten wheel over’s at 50kph from a fully laden 42 tonne truck without compromising the integrity of the post.
FEATURES
- Ideal for concrete pavements
- Durable signpost solution
- Returns to vertical after repeated impacts
- Will not dislodge on impact
- High impact resistance
- Will not fade or discolour
- Thermal resistance -30’C to +80’C
- Life expectancy of 15 + years
- Fire resistant
- Quick and easy to install
- Low maintenance
- High visibility
- Significant cost savings
- No sharp edges
DOWNLOADS
INSTALLATION EQUIPMENT FOR SURFACE MOUNT
Plas-Flex PVC Guideposts FAQs
Why Choose Delnorth’s PVC GuidePosts?
Opting for Plasflex™ PVC Guideposts means selecting a product built to withstand the most challenging Australian road conditions. Supported by Delnorth’s extensive expertise, these posts help meet regulatory requirements, reduce maintenance costs, and enhance road user safety.
What are Plas-Flex PVC Guideposts?
Plas-Flex PVC Guideposts are flexible roadside guideposts made from UV-stabilised PVC. They provide a lightweight and economical option for road edge and hazard delineation.
How do Plas-Flex PVC Guideposts perform when hit?
When impacted, the posts flex rather than snap, helping reduce damage to the post and the vehicle and allowing them to remain functional after contact.
Are Plas-Flex PVC Guideposts suitable for outdoor use?
Yes. The PVC material is UV-stabilised and impact-resistant, helping the posts withstand exposure to sunlight and weather without cracking or fading.
What makes Plas-Flex PVC Guideposts easy to handle and install?
The posts are lightweight, which makes them easy to transport, handle, and install, reducing labour effort and improving onsite safety.
Where are Plas-Flex PVC Guideposts commonly used?
They are commonly used on rural and regional roads, construction and work zones, car parks, and industrial or depot environments.
