360° Line of Sight
Marker Posts for Utilities
High-Visibility from every direction
Ensure your assets and utilities are visible from every direction with our 360° line of sight asset identification and marker posts. Designed for critical infrastructure and safety, these posts are perfect for ensuring assets are highly visible in high-risk and high-traffic sites.
Why Choose a 360° Line of Site Marker Posts?
Manufactured in Australia, the Delnorth range of 360° line of sight asset marker posts offer complete utility visibility from any direction. With a range of post, substrate and ground anchor options to choose from, the 360° line of sight asset marker post system is the only choice for critical infrastructure identification.
The highly durable marker post system is compliant to Australian standards, and fully customisable to suit any application.
360° Line of Site Asset Marker Features

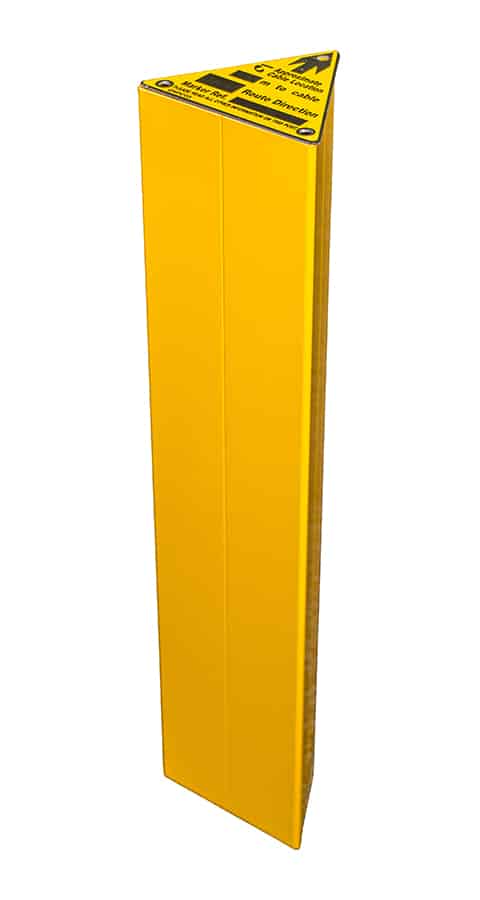

Triangular Aluminium Extrusion
1.6mm Triangular Aluminium Extrusion delivers true 360-degree visibility for maximum safety, with customisable colours, lengths and dimensions.
Galvanised Posts
Rust-resistant and built for Australian conditions, galvanised posts are 1300mm long, can be pre-galvanised, powder coated or hot dipped galvanised after fabrication.
Multiple Ground Spike Options
With multiple Oz-Post ground spike and anchor options, straight and tapered fin, available in multiple lengths, and are suitable for all terrains and ground conditions.

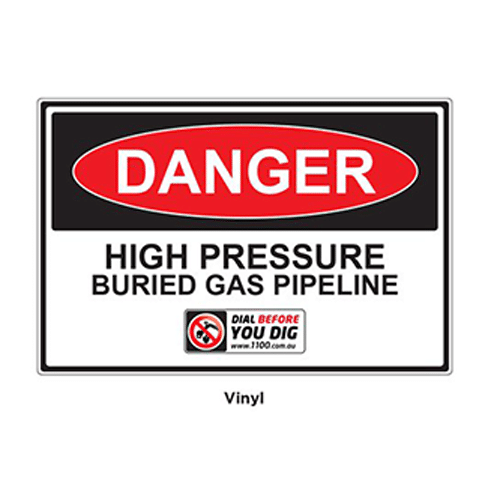

Customisable Substrate & Warning Signs
Customise branding and tailor your warning signs, with fully customised options, including optional compliance information applied for ground crews.
Customisation Options
Colours
Sizes, and identification options tailored to your project requirements
Sign substrate options

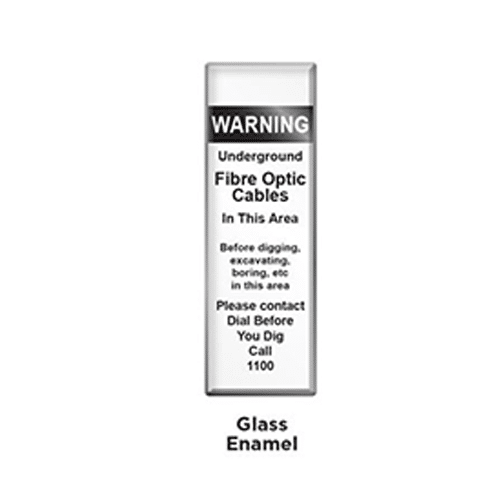

Vitreous glass enamel (15+ years), Etched/paint-filled aluminium (10–12 years),
Ground anchors
Straight or tapered fin, multiple lengths for all ground conditions

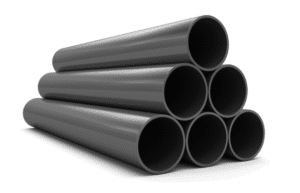

Posts
Pre-galvanised, powder coated, or hot-dip galvanised

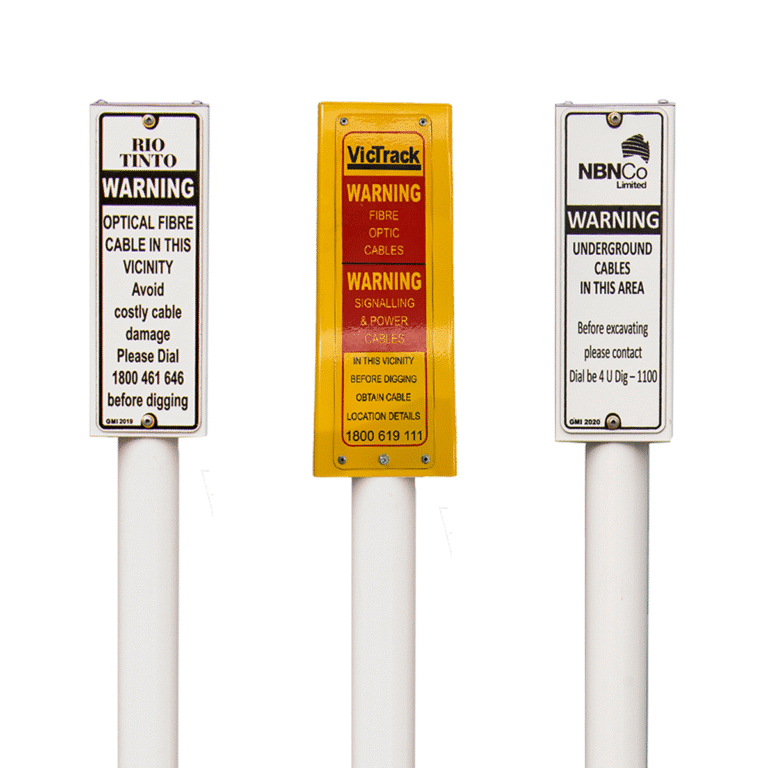

Marker post plates
Lengths, plate dimensions colours, logo and text fully customisable.
Applications

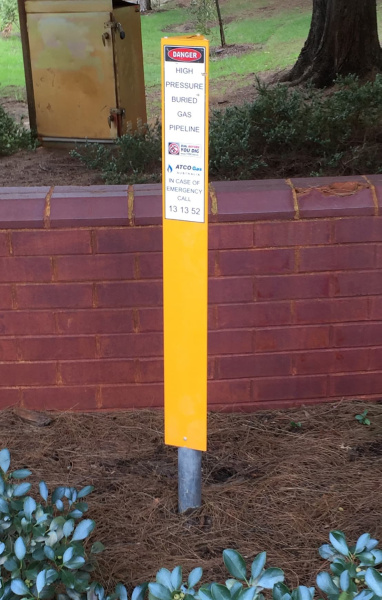

- Utility corridors and pipelines
- Mining and industrial assets
- Roadside and rail corridors
- Anywhere all-round asset identification is critical
STEEL-FLEX® MARKER POST TECHNICAL SPECS
Delnorth Steel-Flex ® is a patented flexible steel delineator post. Steel-Flex ® may be driven into the ground or road base using a Delnorth designed manual or mechanical driving device. Steel-Flex ® is capable of withstanding repeated impacts and wheel overs by vehicles with minimal damage to the post or vehicle. Steel-Flex ® marker posts comply with:
British & European Standard E N 12899 – 3:2008 & Australian Standard AS 1742.2 and AS/NZ 1906.1
Steel-Flex ® can retain a minimum of 75% of colour, appearance and physical properties for 10 years even when exposed to extreme weather conditions. They are fire resistant and the powder coating can withstand temperatures of up to 140°C.
Steel-Flex ® flexible steel marker posts stand vertical when installed. Testing has shown that the post will not deflect more than 35mm when subjected to wind speeds of 45m / sec. (162 kph) on the front face (convex surface) of the post.
The load required to bend each post length of 1000mm long to an angle of 90° should not be less than 30N. It only requires 5kg pressure to bend a Steel-Flex ® post.
Steel-Flex ® marker posts return to vertical automatically after repeated vehicle impacts. They have been tested to 10 impacts from a passenger type vehicle at 100 kph without compromising the integrity of the post. It has been tested to ten wheel over’s at 50kph from a fully laden 42 tonne truck without compromising the integrity of the post.
Steel-Flex ® has been tested to comply with the following standards:
Impact Resistance (ASTM D – 2794) Adhesion (ISO 2815) 2000 hr Salt Spray (ASTM B – 117)
All faces of the Steel-Flex ® marker posts are a smooth gloss white powder coat finish to a minimum thickness of 70 microns over a ArmorGalv ® thermal diffusion anti-corrosive protective coating.
Steel-Flex ® is non-flammable
The manufacturer’s name and the month/year date of manufacture with minimum 1 cm high characters, are applied to the concave surface of the post. The recommended installation depth is marked by a 12mm diameter hole punched into the post 40cm from the lower pointed edge. Reflective sheeting is applied to conform with the relevant specifications.
One piece Steel-Flex ® delineator posts are driven into the ground or road base to a minimum depth of 400mm. Dual retention barbs assist to provide post stability, correct alignment and resistance to unlawful removal by hand. Testing has shown that when installed correctly in average ground conditions, there is a force of over 500kg required to remove the post from the ground.
To maximise the life of the post, it is recommended that a small V shape divot approximately 100mm deep x 100mm long x 105 mm wide, be removed to provide a bend radius when there is a direct wheel-over by a vehicle. This void may be filled with sand if required. Installation instruction sheets are included.
Steel-Flex ® posts can be fitted with all available types of Guide Post delineators and Marker Post stickers complying with AS 1906.1. The posts can be driven in with delineators or stickers attached.
Steel-Flex ® posts have been test conditioned for 2 hours at temperature extremes of -10°C and +60°C.
Result of Steel-Flex ® Heat Resistant Test = Pass (1 second each bend)
Result of Steel-Flex ® Cold Resistant Test = Pass (1 second each bend)
The Steel-Flex ® post has been conditioned for 2 hours at -10°C and no signs of splitting or fracturing when a steel ball at 1kg was dropped from a height of 1500mm.
Result of Steel-Flex ® Steel Ball Test = Pass (1 second each bend)
FEATURES
- Manufactured in Australia from high performance steel.
- ArmorGalv ® thermal diffusion coated for corrosion resistance
- High gloss, fire resistant powder coated finish
- Wide range of colours.
- Fast, safe and easy to install using selected petrol powered, pneumatic or manual drivers.
- Guaranteed for up to 10 years
- Light weight and easy to store – minimal area required.
- Safe to handle – no sharp edges.
