A Heavy Duty Lane Divider Treatment for Long-Term Traffic Management Applications

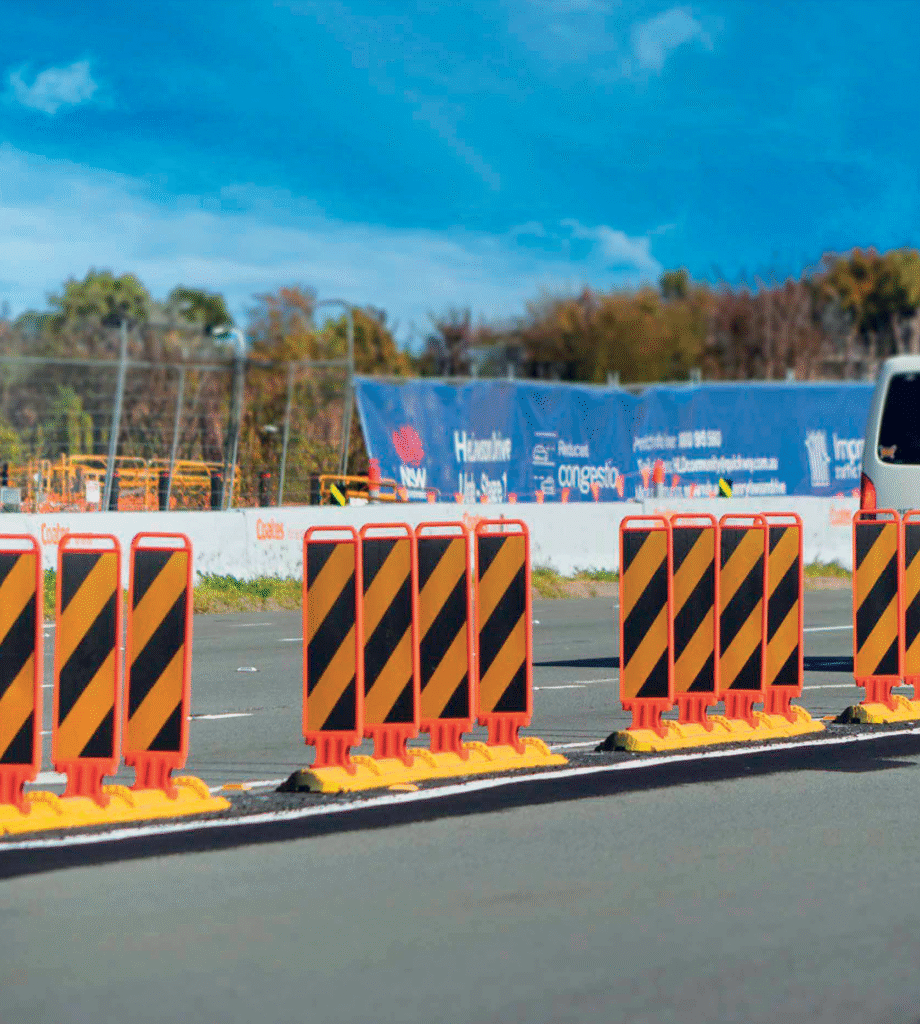

The unique Versikerb traffic separation system is ideal for separating lanes with a series of highly visible chevron delineation panels. It can be installed as a collapsible delineator bollard system ahead of concrete barrier end treatments or crash cushions.
The Versikerb system consists of a dense plastic centre module, and a choice of single or double-sided chevron panels that click into the horizontal lane divider. When impacted, its rugged rubber construction returns to shape without ripping or cracking. Multiple lane direction options are available. This system is used throughout Australia with both major construction, civil, and council roads.
Versikerb is ideal for efficiently redirecting traffic without needing excessive space on the road. It’s compact design is an effective lane divider and is visible from a significant distance. When impacted, its rugged rubber construction returns to shape without ripping or cracking.
What is Versikerb?
The Versikerb traffic separation system is perfect for managing lane separations and guiding traffic with its highly visible chevron delineation panels. Whether used to prevent corner cutting or increase pedestrian safety, this system delivers top-notch performance in a variety of road traffic management tasks.
Its compact design allows it to redirect traffic without taking up too much space on the road. The Versikerb systems has the ability to act as a collapsible delineator bollard system when installed ahead of concrete barrier end treatments or crash cushions like the TAU-II and Absorb 350. This extra layer of visibility warns motorists before they approach rigid structures, potentially preventing accidents and enhancing road safety.

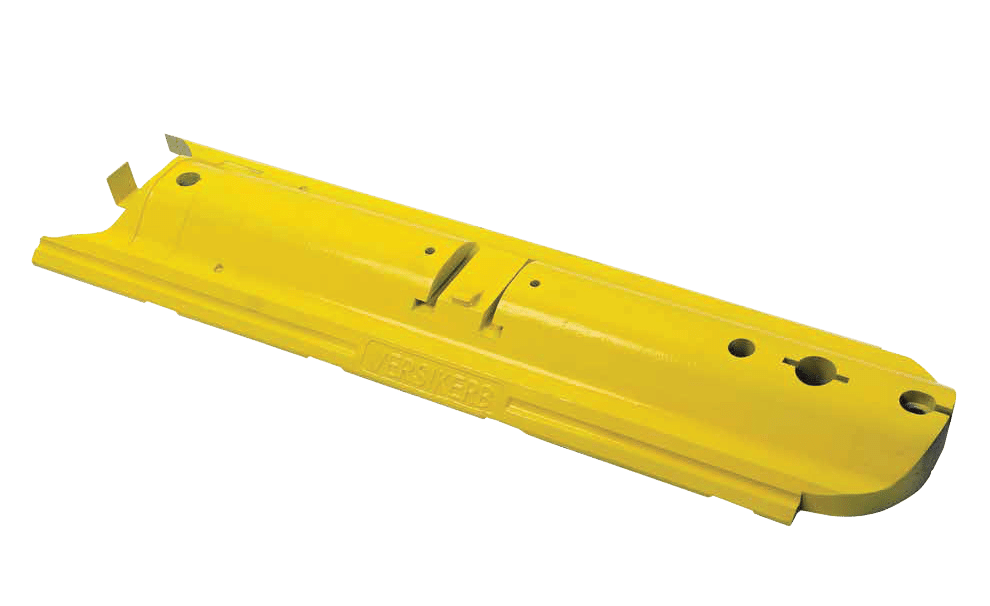

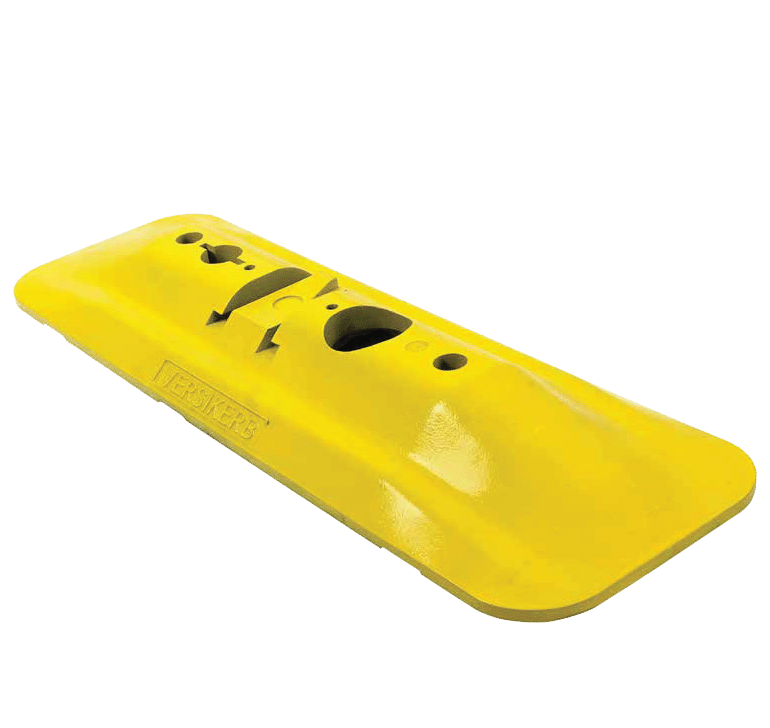

Kerbs
The individual elements of the Guide Kerb are interconnected by an extremely sturdy metal hook. The anti-skid system (ARS) on the underside of the Kerb provides excellent surface adhesion on the road. The lateral guide rails – climbing edges – ensure that the separator is firmly pressed to the ground by the weight of the vehicle passing or running over it. A solid 15KG weight per section, dual wall design with the optional connection screw and ground anchor provides a safe, projectile-free temporary kerb that neither needs bolting nor adhesion to the road surface.
- Two-tier shape with optional tapered end modules
- Made from recycled materials
- High Visibility Yellow
- With steel hook interlocking system and safety screw option
- Break-proof
- All weather durability
- Skid resistant grips
- Gutters for fast water recession
- Single tapered sections for medians and spaced rows also allow for bollard option
VERSIKERB 900MM
VERSIKERB 1M

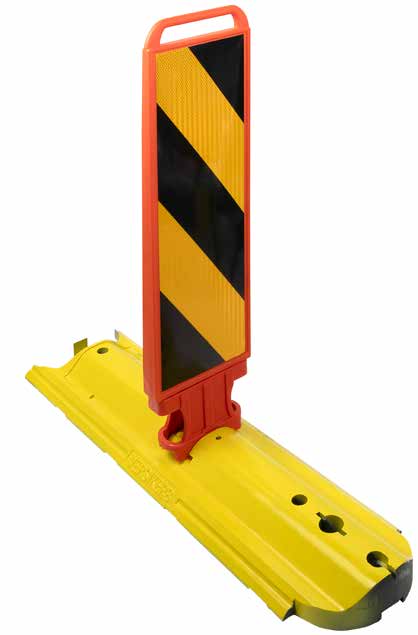

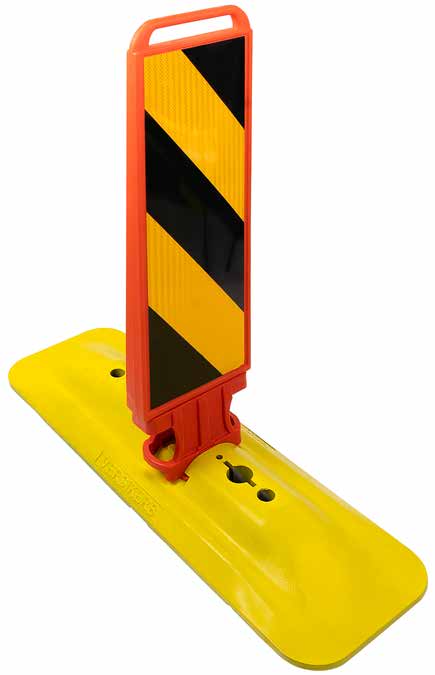

Paddles
The paddles are sturdily mounted and simply click into place with two guide slots located in the insertion device of the Guide curb. Even if hit or run over by a vehicle they are designed to bounce back into the original position.
- Handles
- Flexible rubber adapter
- CL 400 Reflective
- Panel made of high impact plastic
- Orange border to increase visibility

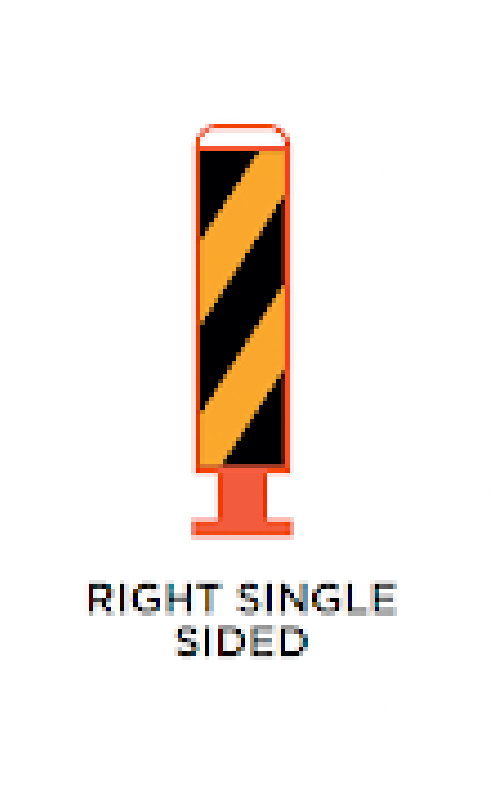

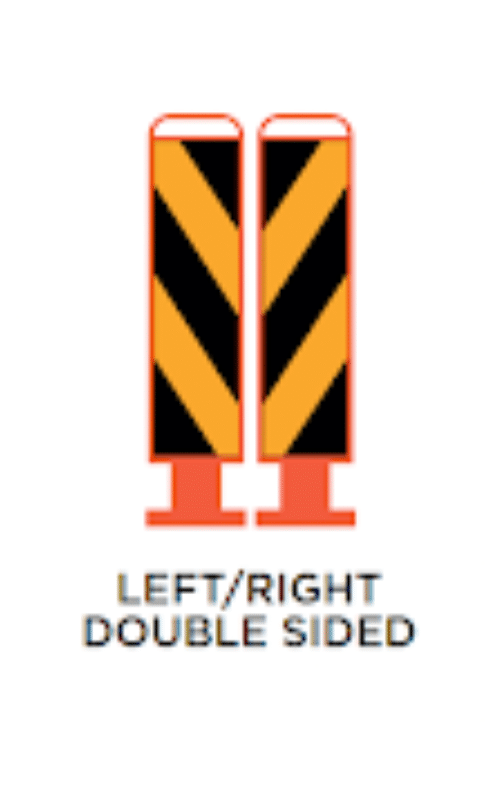

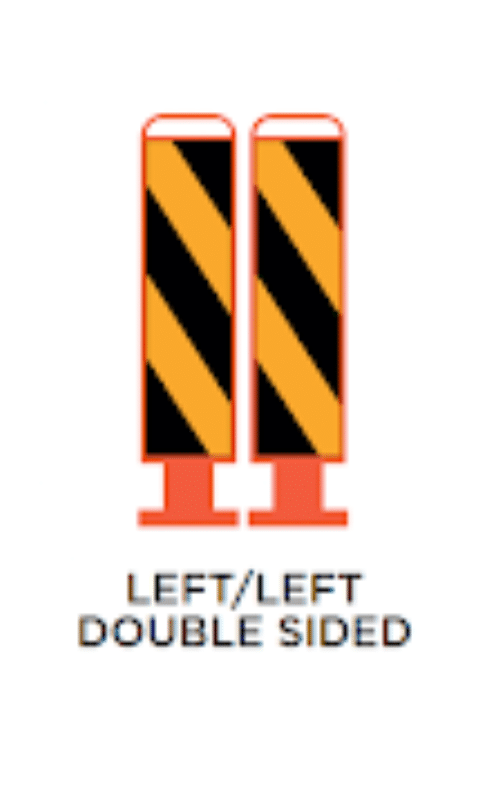

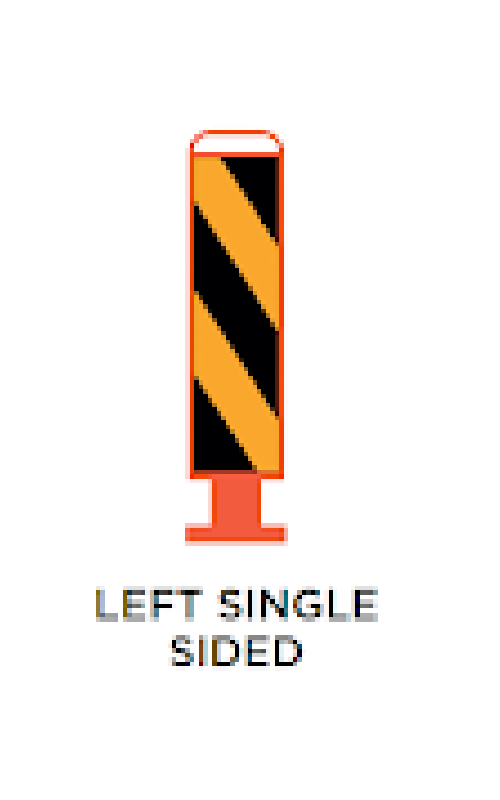

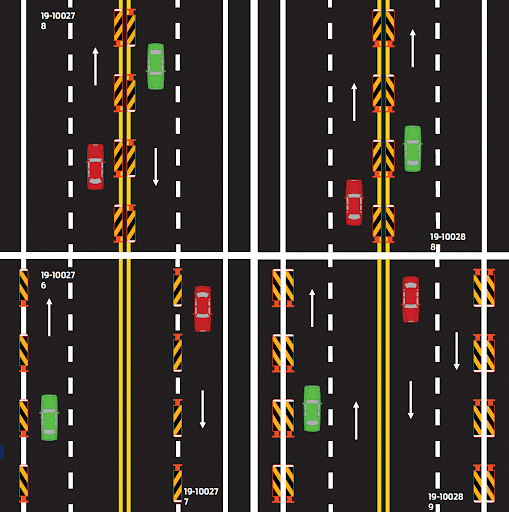

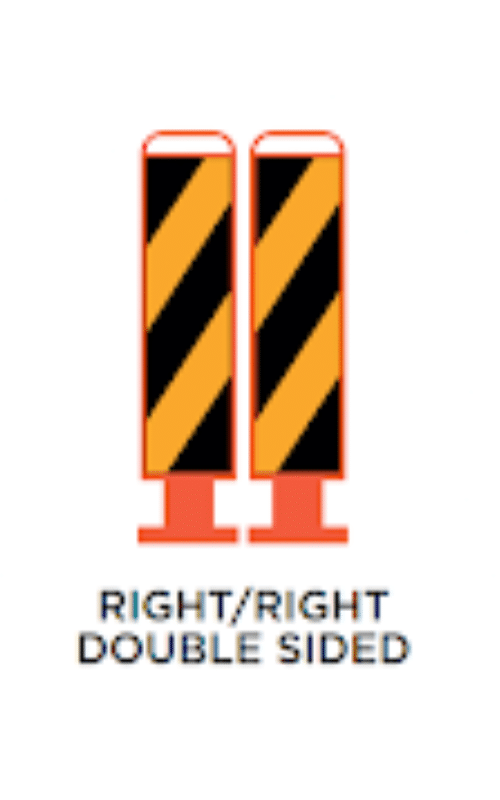

Versikerb Directions
Accessories:

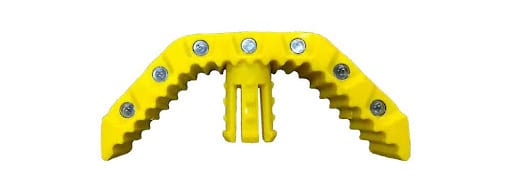

Reflective Arch:
We recommend one arch is used per kerb. Each arch has 14 cat’s eyes reflectors. The arch fits snug on the kerb highlighting the height of the Kerb on the road, which is very helpful for motorcyclists during night-time allowing them to visualise the elevation of the road.

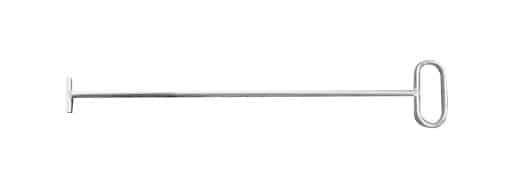

Lifting Tool
Available to assist removing the kerbs when needed.
Bolts
- M10 x 75mm hdg 4.6 grade screw
- M10 Flat MG Washer Galv

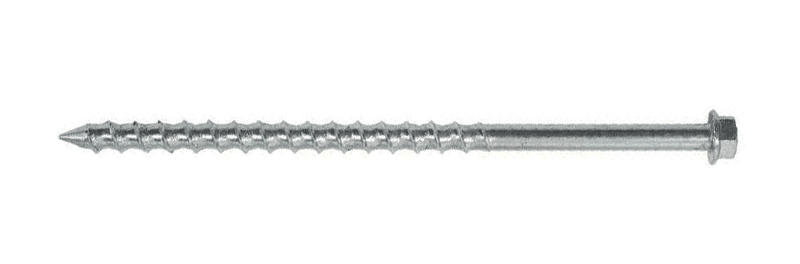

- Asphalt Anchor Screw M12 x 300mm
